What's the real difference between belt drive and chain drive garage door openers?

Belt drive runs a steel-reinforced rubber belt instead of a metal chain, which is why LiftMaster calls its belt units virtually silent and recommends them for attached garages. Chain drive is the more affordable, very durable option for heavy doors, at the cost of noticeably more vibration and noise. That difference matters most when the garage sits under or beside a bedroom.

How many horsepower or newtons do I need for an 8-foot garage door?

An 8-foot door adds travel distance and usually weight compared to a standard 7-foot door, so it's a case for sizing up a tier rather than assuming a base-model opener will handle it. Match the opener to the door's actual weight, not just its width, and lean toward 3/4 HP or higher for anything insulated, oversized, or wind-rated.

Is it worth repairing a garage door opener, or should I just replace it?

Here's the gut check we use: if a repair estimate runs more than half the price of a new installed unit, it's usually smarter to replace it. Most openers last 10 to 15 years, so a unit past that mark with a failing logic board or worn gear kit is usually a replace, while an isolated gear-kit issue on a younger unit is usually a repair.

Does my garage door opener need battery backup in Missouri?

No. Battery backup is a California-specific building code requirement, not a federal or Missouri mandate. It's a genuinely useful option for keeping your garage openable during a power outage, but here it's a purchase choice, not a code requirement.

What is UL 325 and why does it matter when buying an opener?

UL 325 is the federal safety standard that has required every residential garage door opener sold in the US, since January 1, 1993, to include external entrapment protection: a reversing mechanism plus a non-contact secondary system like photo-eye sensors or an edge sensor. It exists because of two fatal entrapment accidents in the Minneapolis-St. Paul area in 1988, and it's a safety floor every legal opener must meet, not a premium add-on.

Are myQ, Matter, and HomeKit compatible openers actually smart, or just app-connected?

Mostly the latter, so far. Most "smart" openers still run on proprietary apps and cloud systems rather than a shared standard, since Matter didn't add native support for garage door openers until version 1.5, released in November 2025, and real-world compatibility still depends on whether your specific ecosystem has implemented it. A smart opener adds convenience, but it doesn't replace wired safety sensors or exempt the unit from UL 325.

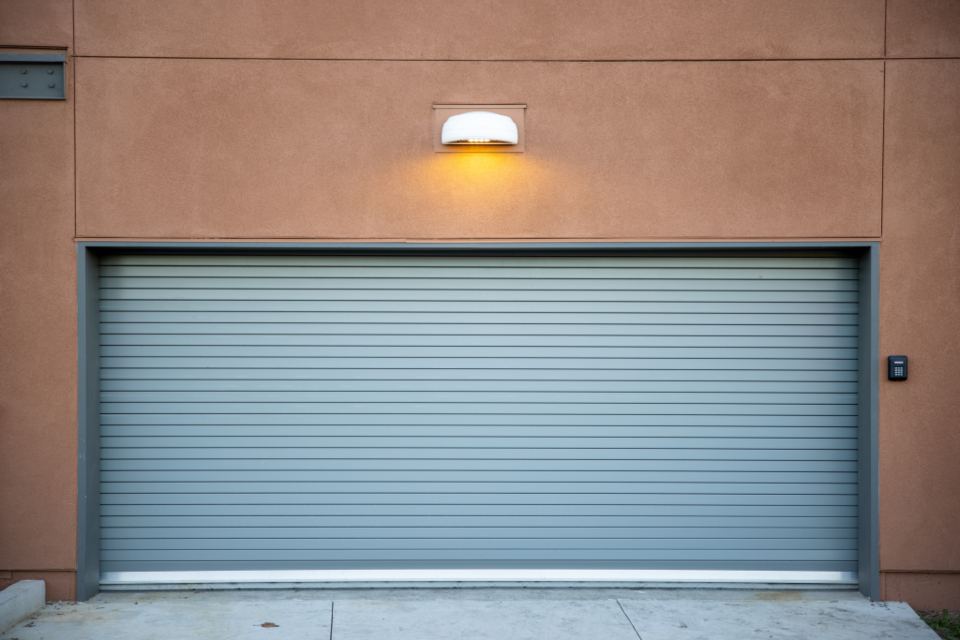

Garage Door Openers: Belt, Chain, Screw, or Wall-Mount?

If your garage door opener is humming without lifting, grinding on every cycle, or simply old, you're facing a decision most homeowners make once a decade. Here's Larry's plain-spoken breakdown: drive types, sizing, the UL 325 safety standard, real smart-feature limits, and installed costs, so you can decide with confidence, not a sales pitch.

What type of garage door opener is right for your home?

The right drive type comes down to a tradeoff between noise, cost, and how the motor fits your garage's layout: chain drive is the affordable workhorse, belt drive is the quiet option, screw drive trims moving parts, and wall-mount frees up your ceiling. There's no single "best" opener, just the one that matches your garage and budget.

Chain drive

A metal chain pulls the trolley along a rail, the same basic mechanism garage door openers have used for decades. It's the most affordable option and handles heavy doors well, but it's also the noisiest and produces the most vibration, since metal is dragging against metal on every cycle.

Belt drive

Same rail-and-trolley mechanism, but the chain is swapped for a rubber, fiberglass, or steel-reinforced belt. It runs noticeably quieter with less vibration, which matters most if your garage sits directly under or beside a bedroom or living space. That quiet comes at a higher price than chain drive.

Screw drive

A threaded steel rod replaces the rail-mounted chain or belt entirely, so the trolley threads along the rod instead of being pulled by it. Fewer moving parts means less to wear out, but the lubrication is more temperature-sensitive, and screw drive's market share has been declining industry-wide as belt and chain options have improved.

Wall-mount (jackshaft) drive

Instead of a rail running down the center of the ceiling, the motor mounts on the wall beside the door, driving the torsion bar directly. That frees up your entire ceiling for storage, a car lift, or overhead shelving, which is exactly why it's popular in garages with tight ceiling clearance. It's typically the most expensive option of the four (Bob Vila, "How Much Does Garage Door Opener Installation Cost?").

Belt drive vs. chain drive: what's actually different?

Belt drive is quieter and lasts longer; chain drive is cheaper and just as strong for heavy doors. A belt drive runs a steel-reinforced rubber belt instead of a metal chain, which is why LiftMaster describes its belt units as "ultra-strong and virtually silent, making them ideal for homes with attached garages," and its chain units as "reliable and powerful," built "to handle heavy and frequently used doors with ease" (LiftMaster, Garage Door Opener Buyer's Guide). In our own installs, the difference is most obvious in the rattle a chain makes through a shared wall, not in how well either one lifts.

These are real-world ranges, not lab-standardized figures, since testing methods vary by source and model.

Lifespan tells a similar story. InterNACHI's life expectancy chart for homes puts a garage door opener at 10 to 15 years, against 20 to 25 for the door itself (InterNACHI, Standard Estimated Life Expectancy Chart for Homes). In our experience the belt units tend to land at the top of that range or a little past it, and the chain units in the middle, though maintenance matters more than drive type either way. Neither is objectively "better." If the garage is detached, or sits far from bedrooms, chain drive's lower price is hard to beat. If it's attached and close to where people sleep or work, belt drive's quiet operation is usually worth the extra cost.

What horsepower or newton rating do you actually need?

Size the opener to the door's actual weight, not just its width. An undersized motor strains on every cycle and wears out faster; an oversized one is just wasted cost. Most residential doors need somewhere between 1/2 HP and 1 HP, and insulated, oversized, or wind-rated doors typically call for a higher tier than a standard panel.

As a general guide: a standard single-car non-insulated door (roughly 75 to 130 lbs) needs at least 1/2 HP, while an insulated single-car door (roughly 100 to 175 lbs) usually calls for 1/2 to 3/4 HP. Double-car doors need more: 3/4 HP for a non-insulated door (roughly 130 to 185 lbs), and 3/4 HP or more for an insulated double door (roughly 175 to 275 lbs). Heavy wood or carriage-style doors (200 to 450+ lbs) typically need 3/4 to 1 HP, and oversized doors 18 feet wide or larger, running 250 to 500+ lbs, need 1 HP or greater. Wind-rated doors with reinforcing struts add another 25 to 75 lbs on top of these ranges, which can bump the recommendation up a tier. Those weight bands are our own sizing rule of thumb from the doors we actually hang in St. Charles County, not a published manufacturer table. LiftMaster's own guidance is coarser: 1/2 HP for standard doors, 3/4 HP to "lift heavy and reinforced doors in high-wind areas" (LiftMaster, Garage Door Opener Buyer's Guide). When a door sits near a boundary, we size up. More horsepower puts less strain on the unit over its life, and the price gap between tiers is small next to a premature replacement.

If you're comparing European or Chamberlain-branded spec sheets, you'll often see newton (N) ratings like 700N, 800N, or 1000N instead of horsepower. There isn't a standardized public conversion table between the two, so treat newton ratings qualitatively: a heavier or taller door needs a higher N rating, the same logic as HP, just a different unit.

An 8-foot-tall garage door is a common case where sizing matters more than it looks. The extra foot of travel over a standard 7-foot door adds both distance and usually weight, so it's worth sizing up a tier or confirming the opener's rail and gear kit are rated for the taller travel, rather than assuming a base 7-foot-rated unit will handle it fine.

Is my garage door opener actually safe? Understanding UL 325

Every legally sold residential garage door opener in the US has been required to include entrapment protection since January 1, 1993, no exceptions. UL 325 is the federal safety standard behind that requirement, and it exists because of a real tragedy, not a marketing checkbox.

The photo-eye sensor requirement

The Consumer Product Safety Improvement Act, signed November 16, 1990, and a matching UL standard published December 31, 1991, were both direct responses to two fatal garage-door entrapment accidents in the Minneapolis-St. Paul area on October 5, 1988. Every opener sold since January 1, 1993 has had to include a non-contact secondary reversing system, almost always a pair of photo-eye sensors mounted no higher than 6 inches off the floor (Engineer Fix, "What Is the Required Height for Garage Door Sensors?"), plus a reversal function that stops and reverses the door on contact with an obstruction (DASMA, "15 Years Ago: New Federal Law Targets Garage Door Openers"). If you own an older opener without photo-eyes, it isn't automatically illegal to keep using, but the sensors on any opener that has them should never be disconnected or bypassed. That's a safety floor, not an optional feature.

Does Missouri require battery backup?

No. Battery backup is a California-specific building code requirement, tracing back to SB-969 (signed September 21, 2018, effective July 1, 2019), not a nationwide UL 325 mandate. LiftMaster confirms its openers meet UL 325 and notes that SB-969's battery-backup requirement applies specifically to units installed in California (California Legislative Information, SB-969 (2017-2018); LiftMaster, "UL 325 Standards & Compliance"). In St. Charles County, Lincoln County, and Warren County, battery backup is a genuinely useful upgrade for keeping your garage openable during a storm-related power outage, but it's a purchase decision here, not a code requirement.

Do smart openers (myQ, Matter, HomeKit) really work as advertised?

Smart garage door openers are useful for convenience, but "smart" mostly still means "app-connected to a proprietary system," not a shared standard. Matter, the cross-platform standard backed by Apple, Google, and Amazon, didn't add native garage-door-opener support until version 1.5, released in November 2025 (CSA-IOT, "Matter 1.5 Introduces Cameras, Closures, and Enhanced Energy Management Capabilities").

Real-world support still varies by app (Apple Home, Google Home, SmartThings), even on units built for it. In practice that means most myQ-style systems today still run on the manufacturer's own app and cloud service. A few things worth knowing before you buy, based on what we run into in the field: some smart openers still expect an older 2.4GHz Wi-Fi connection rather than the 5GHz band many routers default to, advanced features can sit behind a subscription on certain models, and remote control depends on your internet and the manufacturer's cloud staying up. None of that is a dealbreaker, smart openers are genuinely convenient for checking whether you left the door open, but a smart garage door opener doesn't replace a wired photo-eye sensor and doesn't exempt the unit from UL 325's safety requirements.

Should you repair your opener or replace it?

Age and the type of failure tell you almost everything. A garage door opener typically lasts 10 to 15 years under normal residential use (InterNACHI, Standard Estimated Life Expectancy Chart for Homes), though belt-drive and wall-mount units often stretch past that with maintenance.

The trade's "50% rule" is a fast gut check: if a repair estimate costs more than half of a new unit installed, replace it instead. A few practical signals for each side:

Lean toward replace: the unit is past 10 to 15 years old, it's had repeat logic-board or capacitor failures, or a worn gear kit is showing up alongside other aging components.
Lean toward repair: an otherwise sound, younger unit has isolated gear-kit wear, the remote or keypad batteries are dead, or the photo-eye sensors are simply misaligned rather than failed.

If your opener is doing something specific right now, like humming without moving the door, not responding to the remote, or refusing to close, our symptom-by-symptom troubleshooting guide walks through what to check before you call anyone. And if the opener itself is fine but you're not sure when it was last serviced, our guide to service scheduling covers the maintenance that can add years to any drive type. When it's time for a second opinion or a hands-on look, our repair team can tell you honestly which side of that line your unit is on.

How do the four drive types actually compare?

Chain drive is the entry point, belt and wall-mount sit above it, and screw drive lands in between. The quietest option is not automatically the longest-lived one, and the loudest is not automatically the weakest, so it is worth comparing them on the things that differ.

Drive Type	Relative Up-Front Cost	Noise	Typical Lifespan	Notable Trait
Chain drive	Lowest	Loudest	10-15 years	Handles heavy doors, rattles through a shared wall
Belt drive	Higher	Quietest	15-20 years	Steel-reinforced rubber belt, best for attached garages
Screw drive	Middle	Moderate	10-12 years	Fewest moving parts, most temperature-sensitive
Wall-mount (jackshaft)	Highest	Moderate	15-20 years	Motor off the rail entirely, frees ceiling space

A quieter, longer-lasting belt or jackshaft unit costs more up front, but it can outlast two chain-drive replacements over the same span. Sticker price alone does not tell the full lifetime story, which is why we would rather quote your door than have you shop on the box price. Ask us for a quote once you know which drive type suits the garage.

Between Missouri's freeze-thaw winters (fewer than 25 days a year at or below 32°F, and just 2 to 3 days at or below 0°F, per National Weather Service climate normals for St. Louis) and hot, humid summers, the tri-county area isn't an extreme climate for opener components, but cold does thicken chain lubricant and moisture takes its toll on hardware over time (National Weather Service St. Louis, "Climate of St. Louis"). Whatever drive type you choose, it's worth pairing it with a regular tune-up schedule rather than treating installation as a one-time decision.

Whether you already know which drive type you want or you're still weighing the tradeoffs, our installation team will size the opener to your actual door instead of defaulting to whatever's easiest to sell. Reach out and we'll walk through it honestly, no gimmicks, no upsell.
